Digital Compressed Air Flow Meter for Factory CFM Energy Audit Monitoring Kits
Quick Answer: A digital compressed air flow meter with thermal mass sensing gives a direct CFM or Nm³/h readout for each compressor header, branch line, or machine. Silver Automation Instruments supplies factory CFM energy audit monitoring kits with the meter, local display, data logger, and 4-20 mA or RS485 output. Send pipe size (DN), air pressure (bar), temperature range, and required CFM range to get a quote.
Why a Compressed Air Audit Needs a Digital Flow Meter
Compressed air is one of the most expensive utilities in a factory. Many plants lose 20 percent to 40 percent of compressed air through leaks, open drains, and poor piping. A digital compressed air flow meter shows the real CFM value at each header or machine. This is not guesswork. You see load and leak patterns during full production, breaks, and shutdowns.
But a digital meter changes the audit from guesswork to measurement. We have seen this on customer sites many times. A small leak of 3 mm under 7 bar can waste more than 1,500 kWh per year in some countries. That adds up fast in Vietnam, Thailand, or Mexico where electricity costs are high and compressed air systems run 24 hours. In practice, a factory CFM energy audit without digital metering misses most of the story.
What Does a Factory CFM Energy Audit Monitoring Kit Include?
The standard Silver Instruments kit for compressed air audits includes a thermal mass insertion flow meter, a local digital display, a pressure sensor input, and a data logging function. The meter measures standard flow in CFM or Nm³/h. It also reads actual temperature and pressure at the insertion point. The digital output can be 4-20 mA, pulse, or RS485 Modbus RTU.
Most plants use the insertion probe from DN80 to DN300. For smaller lines from DN15 to DN50, we supply inline thermal mass or vortex flow meters. The kit can run on 24 V DC or 220 V AC. Some customers order a portable battery powered version for short audits. Others install fixed meters on every compressor room header.
What CFM Reading Means for Your Audit
CFM at actual line conditions is not the same as standard CFM. Temperature and pressure change the air density. The digital meter corrects the reading to standard conditions at 20 °C and 101.325 kPa. That gives you a repeatable number. You can compare the main compressor output with the sum of all branch loads. If the main flow is 40 percent higher than the branch total, you have leaks or unmetered uses.
For example, a paint manufacturer in Ho Chi Minh City ran a weekend leak check. The main header read 118 CFM with all production lines idle. The normal idle load should have been 25 CFM. They found a failed drain valve and three threaded joints leaking. The payback for the audit kit was less than two weeks.
Which Meter Type Works Best
Thermal mass flow meters work well for dry compressed air. They have no moving parts and accept a wide turndown ratio. Insertion probes are cost effective for DN80 to DN300. Inline meters suit DN15 to DN50. Vortex flow meters can handle wet air or higher temperatures better. For saturated air with oil carryover in a chemical plant, we may recommend a vortex meter with a pressure transmitter. Silver Instruments supplies both types.
Tell us the minimum and maximum CFM, pipe size, pressure in bar, and temperature in °C. We will select the probe length and flow range. That matters because a probe sized for a 2 inch pipe will not give stable readings in a 12 inch header during low flow.
Data Logging and Reporting for Energy Audits
The data logger records flow, pressure, temperature, and total flow at 1 second to 60 minute interval

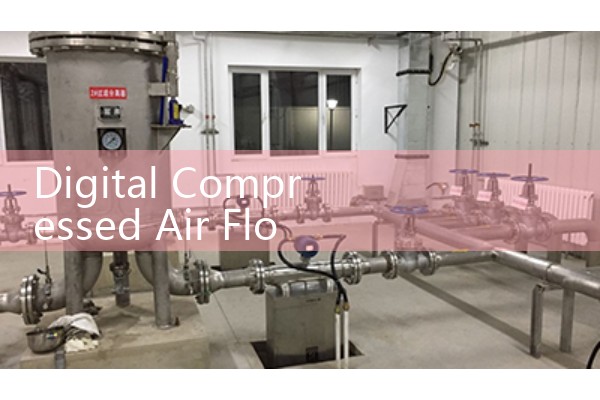

_600x400.jpg)
If you need a permanent setup, use RS485 Modbus RTU to send values to a PLC or to a paperless recorder. Silver Instruments also supplies paperless recorders that display total CFM, pressure, and temperature on one screen. That removes the need for a laptop during a 7 day audit.
Installation Notes for Busy Plants
Insertion probes need a 1 inch or DN25 ball valve fitting. Install the probe at a straight run of at least 15 pipe diameters upstream and 10 downstream. Avoid elbows, valves, or tees too close to the sensor. If space is tight, use a flow conditioner. Most engineers skip this part, then wonder why the reading fluctuates.
For compressed air headers above DN300, a single insertion probe may not capture the full profile. Use two probes or a multi-point averaging insertion meter. We supply both options. In a wastewater treatment plant in Manila, a DN400 header needed two probes because the velocity profile changed after a dryer line cycled on and off.
Pricing and Lead Time
Price depends on pipe size, meter type, outputs, and whether you need a portable kit or permanent installation. A typical inline DN25 digital compressed air flow meter with display and 4-20 mA output starts around 680 US dollars. An insertion thermal mass kit for DN100 with data logging and RS485 starts around 1,250 US dollars. A complete factory CFM energy audit monitoring kit for DN100 with insertion probe, data logger, and all fittings starts around 1,650 US dollars. We ship from China to Southeast Asia, Australia, the Middle East, Africa, and Latin America. Lead time is usually 5 to 10 working days for standard models.
What to Send for a Quote
Do not send a long description of your whole plant. Send us these six details: pipe size (DN), pipe material, air pressure (bar), temperature (°C), flow range in CFM or Nm³/h, and whether you need local display, 4-20 mA, pulse, or RS485. If you are doing a one week energy audit, tell us if you need battery powered data logging. We will reply with a model, data sheet, and price.
Contact Silver Automation Instruments. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610. Website: flow-meter.com.au.
FAQ: Digital Compressed Air Flow Meter and CFM Audit Kits
What is the difference between CFM and Nm³/h?
CFM is cubic feet per minute. Nm³/h is normal cubic meters per hour at 0 °C and 101.325 kPa. Silver Instruments meters can show both units. Tell us your preferred unit before shipping.
Can this meter be used on wet compressed air?
Thermal mass meters work best on dry air with a dew point below 10 °C at line pressure. For wet air or oil carryover, choose a vortex flow meter. We will ask about your dryer type and dew point.
Do I need temperature and pressure compensation?
Yes if you compare readings across different shifts or seasons. Digital compressed air flow meters with built in compensation give standard flow directly. Without compensation, CFM readings drift with temperature and pressure.
What pipe sizes does the insertion kit support?
Standard insertion probes support DN80 to DN300. For DN400 and above, we supply multi-point averaging probes. For DN15 to DN50, we supply inline meters.
How long does installation take?
Most customers finish a hot tap or weld-on installation in 2 to 4 hours. Portable clamp-on versions are not offered for compressed air because the signal needs a thermal mass sensor in contact with flow.
