How a Mass Flow Meter Works: Measuring Actual Weight or Mass Instead of Volume
Quick Answer: A mass flow meter measures the actual weight or mass of fluid traveling through a pipe over time. It does not track volume. This means the reading in kg/h or lb/min stays valid even when temperature, pressure, or fluid composition changes. Silver Automation Instruments is an industrial flow meter manufacturer and supplier. Our mass flow meters cover liquid and gas lines from DN15 to DN200.
This page explains what a mass flow meter actually measures and how two common types work. You will also find the parameters we need before you request a mass flow meter price.
What a mass flow meter actually measures
A volumetric flow meter measures cubic meters per hour or liters per minute. A mass flow meter measures kilograms per hour, pounds per minute, or tons per hour. The mass reading is not a volume reading with a fixed density assumption. Because the meter measures mass directly, it removes one common source of error in process control.
Many engineers ask about accuracy first. For a typical Coriolis mass flow meter, accuracy can be plus or minus 0.1 to 0.2 percent of rate for liquids. For gas, accuracy depends on the model and pressure conditions. In practice, we ask for at least three items. You need to provide the fluid name, minimum and maximum flow rate, and pipe size. Those details decide whether a DN15 or DN80 meter is suitable.
Why volume based flow meters fall short
Volume changes when temperature changes. Volume also changes when pressure changes. A cubic meter of diesel at 20 °C does not have the same mass as a cubic meter at 50 °C. So a volumetric meter needs temperature compensation or pressure compensation to estimate mass. That adds complexity and uncertainty. A mass flow meter skips that step for many applications.
We have seen this on customer sites many times. A food plant measures syrup by volume in the morning and gets one concentration. The same volume in the afternoon after a temperature rise gives a different batch mass. That affects recipe consistency. Switching to a mass flow meter gives kg/h directly. The batch target stays fixed.
Coriolis mass flow meter working principle
A Coriolis mass flow meter contains one or two tubes. A drive coil vibrates the tubes at their natural frequency. When fluid passes through the tubes, the mass flow creates a phase shift between the inlet and outlet sides. Sensors detect that phase shift. The phase shift is directly proportional to mass flow rate. The meter also measures fluid density from the vibration frequency.
Because this method measures mass directly, a Coriolis meter works on clean liquids, slurries, oils, and many gases. Our Coriolis mass flow meter range covers line sizes from DN15 to DN200. Typical process connections include flange, tri-clamp, and threaded types. For hazardous areas, we offer ATEX Zone 1 options. Outputs include 4-20 mA HART, pulse, and Modbus RTU. You can read kg/h, total mass, density, and temperature from the local display.

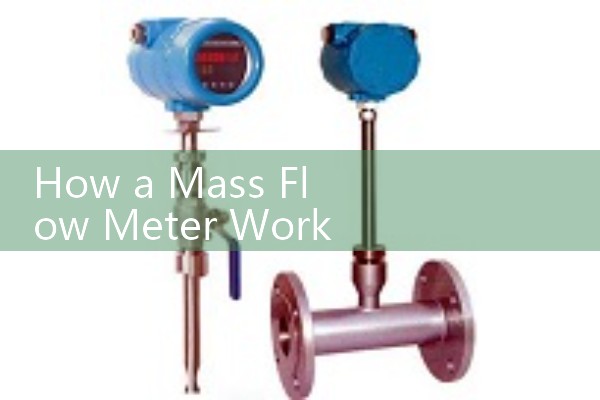

Thermal mass flow meter working principle
A thermal mass flow meter works differently. It has two PT100 sensors in the flow stream. One sensor measures the process gas temperature. The other sensor is heated. Flowing gas removes heat from the heated sensor. More mass flow removes more heat. The meter measures the electrical power needed to keep a constant temperature difference. That power relates to the mass flow of the gas.
Thermal mass flow meters are common for compressed air, natural gas, biogas, and nitrogen lines. They do not need pressure or temperature compensation because they measure mass flow directly at the sensor level. In practice, most engineers pick a thermal mass flow meter for gas flow measurement in pipes from DN25 to DN200. For liquid mass flow, Coriolis is usually the first choice.
Direct mass measurement in real industrial applications
Mass flow meters are not just for laboratory use. We supply customers in Southeast Asia, Latin America, Africa, the Middle East, and Oceania. We also serve oil and gas, water and wastewater, chemical, food and beverage, and marine industries. Here are a few application examples we deal with regularly.
Last year a customer in Vietnam asked us for a Coriolis mass flow meter on a solvent blending skid. The meter records kg/h and total mass per batch. The plant replaced a turbine meter because the so
_600x400.jpg)
A desalination plant in the Middle East uses a Coriolis mass flow meter on the brine discharge line. The fluid density is higher than seawater. The meter reports mass flow and density together. The plant team uses that data for mass balance and pump protection.
A food and beverage factory in Thailand measures liquid sugar with a mass flow meter. The recipe is set in kilograms. Before, the team used a magnetic flow meter and a separate density meter. Now one device handles both mass flow and density.
These examples show one point. When the process target is mass, a mass flow meter reduces the number of instruments and correction calculations.
Key parameters to prepare before you request a quote
To get a suitable mass flow meter price and model, send us these details. Fluid name, minimum flow rate, normal flow rate, maximum flow rate, pipe size, process temperature, process pressure, and required output signal. If the fluid is viscous, mention viscosity in cP. If the installation is hazardous, tell us the zone classification. For gas applications, state whether the gas is clean or contains moisture.
Here is the thing. Most engineers skip the minimum flow rate. But the minimum flow rate determines the turndown requirement. A meter sized only for maximum flow may lose accuracy at low flow. We have seen this problem on pilot plants and startup lines. So we usually ask for a full flow range.
You can send your parameters by email or WhatsApp. Silver Automation Instruments contact details: Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610. Tell us the fluid, flow range in kg/h, operating pressure in bar, temperature in °C, and pipe size in DN. We will reply with a model recommendation and budget price.
Mass flow meter vs volumetric flow meter: a quick comparison
Do not choose a mass flow meter simply because it looks advanced. Choose it when the process benefit is clear. If your fluid density changes with temperature, pressure, or batch composition, mass flow is the better measurement. If you need batching by weight, dosing additives, or custody transfer, mass flow gives a direct signal. If your fluid is clean water at stable conditions, a magnetic flow meter may be enough. The right meter depends on your process, not on the technology trend.
A mass flow meter costs more than a basic volumetric meter. But it often removes the cost of separate density compensation, temperature transmitters, and flow computers. For many liquid batching and gas monitoring applications, the total installed cost is close to or lower than the combined volumetric setup.
FAQ: Mass flow meter working principle and selection
These are the five questions we receive most often from engineers and purchasing teams.
Does a mass flow meter measure weight or volume?
A mass flow meter measures mass per unit time. The reading is usually in kg/h, lb/min, or t/h. It does not need a separate density measurement to calculate mass for many applications. Coriolis meters also report density as a secondary output.
Can a Coriolis mass flow meter measure gas?
Yes. A Coriolis meter can measure gas mass flow. But gas has much lower density than liquid. The meter size must suit the gas flow range and pressure conditions. For low pressure air or biogas, a thermal mass flow meter is often more cost effective.
What is the typical accuracy of an industrial mass flow meter?
For liquid mass flow, a Coriolis meter often reaches plus or minus 0.1 to 0.2 percent of rate. For gas mass flow, a thermal meter may be plus or minus 1 to 1.5 percent of full scale depending on the model. Always check the accuracy specification under your actual flow range.
What pipe sizes do mass flow meters cover?
Our Coriolis mass flow meter line covers DN15 to DN200 as standard. Thermal mass flow meters cover common gas pipe sizes from DN25 to DN200. Larger line sizes may use insertion thermal probes or special Coriolis designs.
How do I get a mass flow meter price from Silver Automation Instruments?
Send us your fluid name, flow range in kg/h, pipe size in DN, process pressure in bar, and process temperature in °C. You can reach us by Tel: +86-25-68650347, WhatsApp: +86-25-52155837, or WeChat: +86 15365082610. We will reply with a model recommendation and budget price.
