Hedland Hydraulic Flow Meter Diagnostics: Testing Fleet Pump and System Pressure Drop Curves
Quick Answer: Fleet pump problems show up as flow loss at rated pressure. Test pump flow and system pressure drop in one run with an inline hydraulic flow meter. Replace or rebuild the pump when flow falls more than 10 percent below the baseline at normal operating pressure.
Why Fleet Pump Tests Need Flow and Pressure Together
Pressure can look normal while flow falls. A worn pump often holds pressure because the relief valve or load creates resistance. Flow is the value that shows internal bypass. Test both at the same time and you will find the fault faster.
We have seen this in a mining fleet in Western Australia. Operators reported slow boom movement on two hydraulic excavators. Pump pressure at the test port was 235 bar. The spec was 240 bar. The maintenance crew almost returned the pumps to service. A flow check showed 58 L/min against a rated 80 L/min. That is a 27 percent loss. The pumps had worn valve plates.
What a Pressure Drop Curve Shows on a Fleet Pump
A pressure drop curve plots flow against pressure loss. A new pump has a fairly flat curve until rated pressure. A worn pump holds its curve at low pressure and then falls off sharply after 150 bar. That shape points to internal leakage in pistons, gear tips, or the valve plate.
A system curve behaves differently. It rises as flow increases. A clogged filter, a closed valve, or a collapsed hose makes the system curve steeper. Plot both curves on the same graph. The intersection is the working point. If the working point shifts down and to the left, the pump is weak. If it shifts up and to the left, the system restriction has increased.
Field Test Procedure for Pumps and System Pressure Drop
Install the flow meter in the pump outlet line or on a test cart before the main control valve. Add a loading valve downstream. Set the engine to high idle. Record flow at 0 bar, 50 bar, 100 bar, 150 bar, 200 bar, and rated pressure.
Keep oil temperature between 40 °C and 60 °C. Viscosity changes will move the readings. For mobile equipment using ISO VG 46 oil, a 30 °C rise can reduce viscosity enough to increase internal leakage by several percent. Write down the temperature with every reading.
Run the test twice. Let the oil stabilize. The first run warms up the system. The second run gives reliable data. Compare the results to the factory baseline. Most original equipment manuals list pump flow at rated speed and pressure.
Most engineers skip the second run. Do not skip it. The first run only warms the oil and fills the hoses.
Hedland Type Meters for Field Diagnostics
A Hedland style direct reading flow meter works well for basic fleet tests. It uses a sharp edge orifice and a tapered shaft with a spring loaded indicator. The indicator moves with flow. No power supply is needed.
These meters suit mineral oil and phosphate ester fluids. Use a 1 inch meter for flows from 5 to 125 L/min. For pumps above 200 L/min, use a 1.5 inch or 2 inch meter. Keep the meter below 240 bar unless the housing is rated for higher pressure.
The accuracy is normally plus or minus 2 percent of full scale. That is enough for pass and fail decisions in a vehicle bay. If you need tighter data for warranty claims or pump rebuild acceptance, use an oval gear meter or a Coriolis mass flow meter.
Numbers That Point to Pump Wear or System Leakage
A pump that loses 5 percent flow at rated pressure is usually acceptable. A loss above 10 percent means plan a rebuild. A loss above 20 percent means

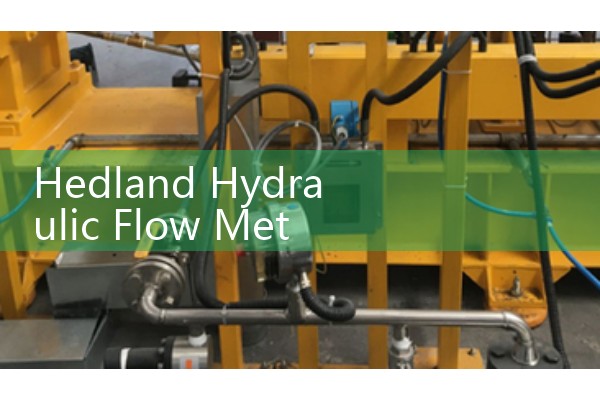

_600x400.jpg)
Case drain flow is another useful signal. On a piston pump, case drain flow should stay below 10 percent of rated pump flow. A rising case drain flow over 500 hours indicates wear. On a 100 L/min pump, a case drain flow of 12 L/min at 210 bar is too high. The pump will fail soon.
System leakage shows a different pattern. Flow at the pump outlet may read normal while flow at the cylinder is low. That gap means oil is bypassing through a relief valve, a control valve spool, or a motor case. Check the pressure drop curve before pulling the pump.
Recommended Silver Instruments Meters for Hydraulic Testing
Silver Automation Instruments supplies flow meters for field service teams and hydraulic test benches. For mineral oil and phosphate ester, an oval gear flow meter with a DN15 to DN50 body covers most mobile pump flow ranges. It gives 4-20 mA HART output and a local display. Accuracy is usually plus or minus 0.5 percent of reading.
For high temperature circuits above 120 °C or when aeration is suspected, use a Coriolis mass flow meter. It reads mass flow and fluid density. It ignores viscosity changes and works in both directions.
For a low cost pass and fail tool, use a variable area hydraulic meter. It has no wiring and no display to fail. Mount it with a pressure gauge and a loading valve on a service cart. The setup is fast and easy to move between trucks.
Customer Site Example: Copper Mine Loader Fleet
A copper mine in Chile tested 14 wheel loaders after repeated pump failures. At 230 bar, three machines showed pump flow below 82 percent of rated flow. Two pumps had worn valve plates. The third had a collapsing suction hose. The flow meter found all three issues before a major failure. The mine now tests every 500 hours and keeps a log of pump curve data.
FAQ: Hydraulic Flow Meter Diagnostics
What is the fastest way to test a hydraulic pump on a machine?
Install a flow meter in the pump outlet line with a loading valve downstream. Record flow at rated pressure and high idle. Compare that reading to the factory baseline. A loss above 10 percent means wear.
What is a system pressure drop curve?
It is a graph of flow against pressure loss across a component or a circuit. A steep curve means high resistance. A shift in the curve can show a clogged filter, a closed valve, or a collapsed hose.
Can a hydraulic pump have good pressure and low flow at the same time?
Yes. A pump can hold pressure through a relief valve or load while internal leakage reduces flow. That is why a pressure gauge alone cannot confirm pump health.
Which flow meter is best for hydraulic oil testing?
For field pass and fail tests, a Hedland type variable area meter is simple and low cost. For accurate data or warranty records, use an oval gear flow meter or a Coriolis mass flow meter from Silver Automation Instruments.
What information should I send to get a hydraulic flow meter recommendation?
Send your pump flow in L/min, system pressure in bar, oil type, viscosity in cSt, pipe size in DN, and the required accuracy. Our engineers will reply with a meter option and a price quote.
Contact Silver Automation Instruments for hydraulic test meters and pump diagnostic support. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610. Or send us your pressure in bar, temperature in °C, pipe size in DN, and flow range in L/min for a specific meter proposal.
